Dark Matter is a high energy sound processor and signal generator that unleashes the crazy raw power of audio feedback into your eurorack system.

A Little Crazy. Untamed. Evocative and Deep and kind of Awful and Totally Beautiful

It’s inspired by “no input” mixer feedback techniques that explore the complex natural behaviors of amplifier circuits pushed beyond their limits. Dark Matter brings this behavior to the modular synth, adds voltage control to everything, plus tons of patching options and a big ol’ bag of tricks for making feedback a truly playable effect.

Features

DRIVE

• Input VCA with gain and soft clipping
• Hyper drive switch for extra punch

TONE

• 2 band equalizer
• Voltage controlled bass and treble boost/overdrive

DYNAMICS

• Envelopes generated by INPUT signal
• Outputs 0-5V. Normalized to FBK CV and X-FADE CV inputs
• Low and High decay time switch
• Input pre or post DRIVE switch
• Envelope monitor LED

FEEDBACK

• Voltage controlled feedback
• High frequency “warning” LED
• External feedback loop section
• FBK OUT and FBK IN jacks
• Output phase switch
• FBK VCA in/out switch

CROSSFADER

• Voltage controlled crossfade between input and feedback
• Input pre/post-drive crossfade switch
• DYNAMICS envelope normalized to mix CV input

Things to Do with Dark Matter

• Excite audio signals to the breaking point with 4 flavors of voltage-controlled overdrive
• Turbo-charge percussive hits and drum beats
• Add sub-octave tones and timbrel richness to melodies and bass lines
• Tweak your tone with a crunchy overdriving 2 band EQ
• Add signal ducking and gating effects with the built-in envelope follower
• Go the feedback way and create meandering loops through your rack using the 10 I/O jacks... Feedback your feedback your feedback

Tutorials

ENGLISH

• Dark Matter pt. 1: Feedback Beats with Casper
• Dark Matter pt. 2: Feedback Melodies with Casper
• Bastl Instruments Dark Matter & Waver feedback

FRANÇAIS

• Instructional video for Dark Matter of Bastl x Casper. Description+paches

Technical Details

• 13 HP
• PTC fuse and diode protected 10-pin power connector
• 24 mm deep
• current consumption +12V: < 75mA; -12V: <75 mA

Downloads

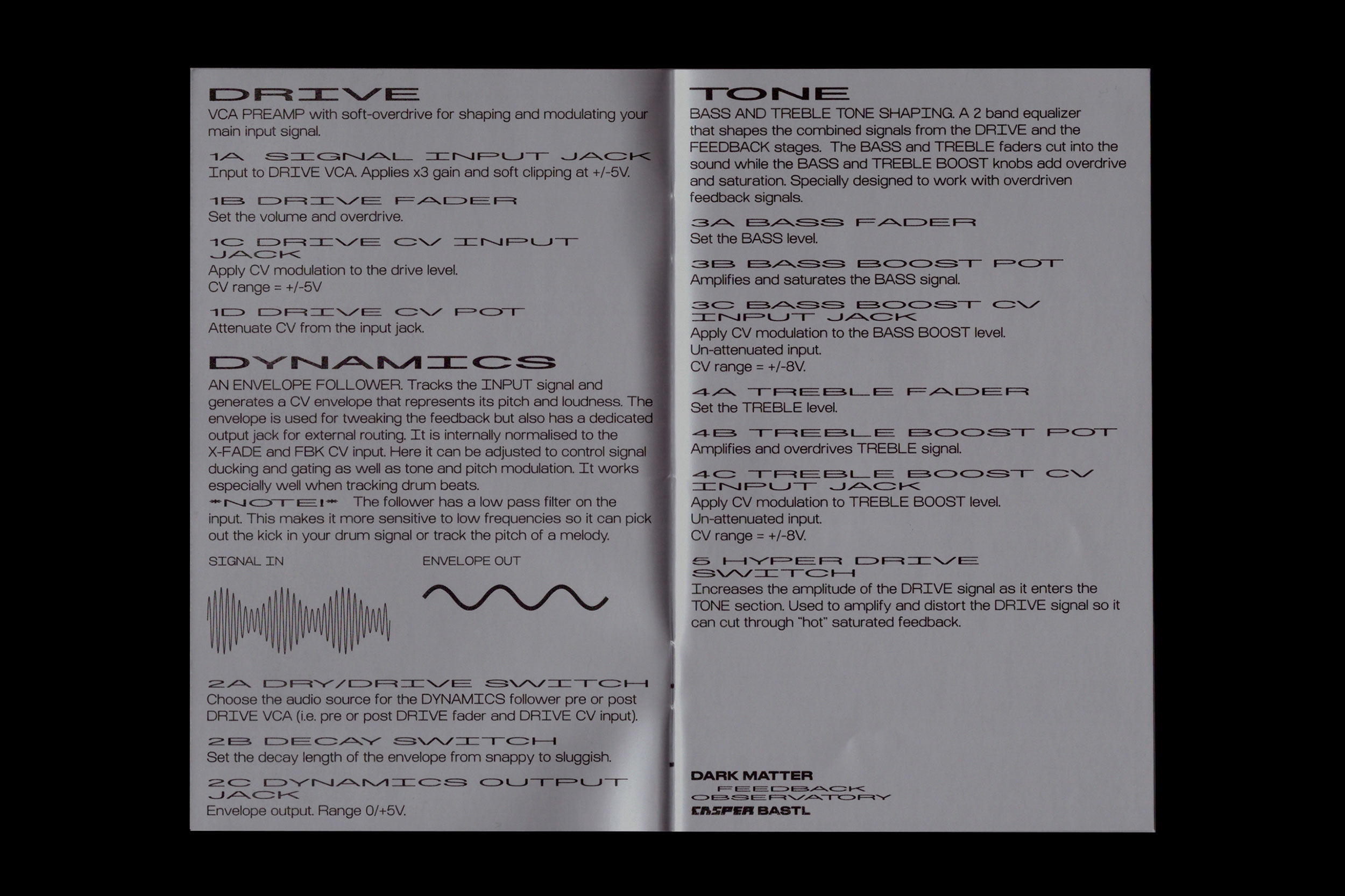

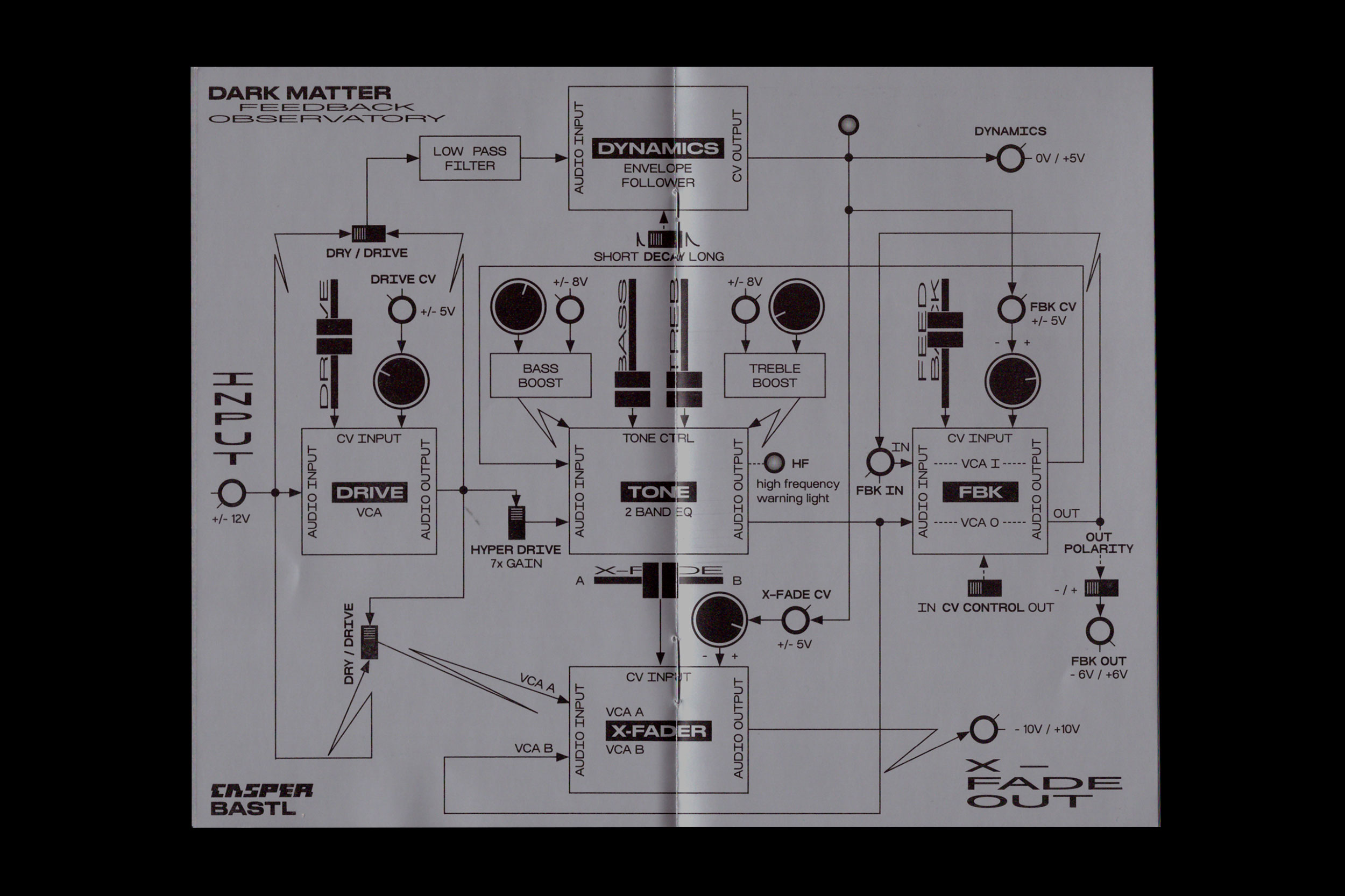

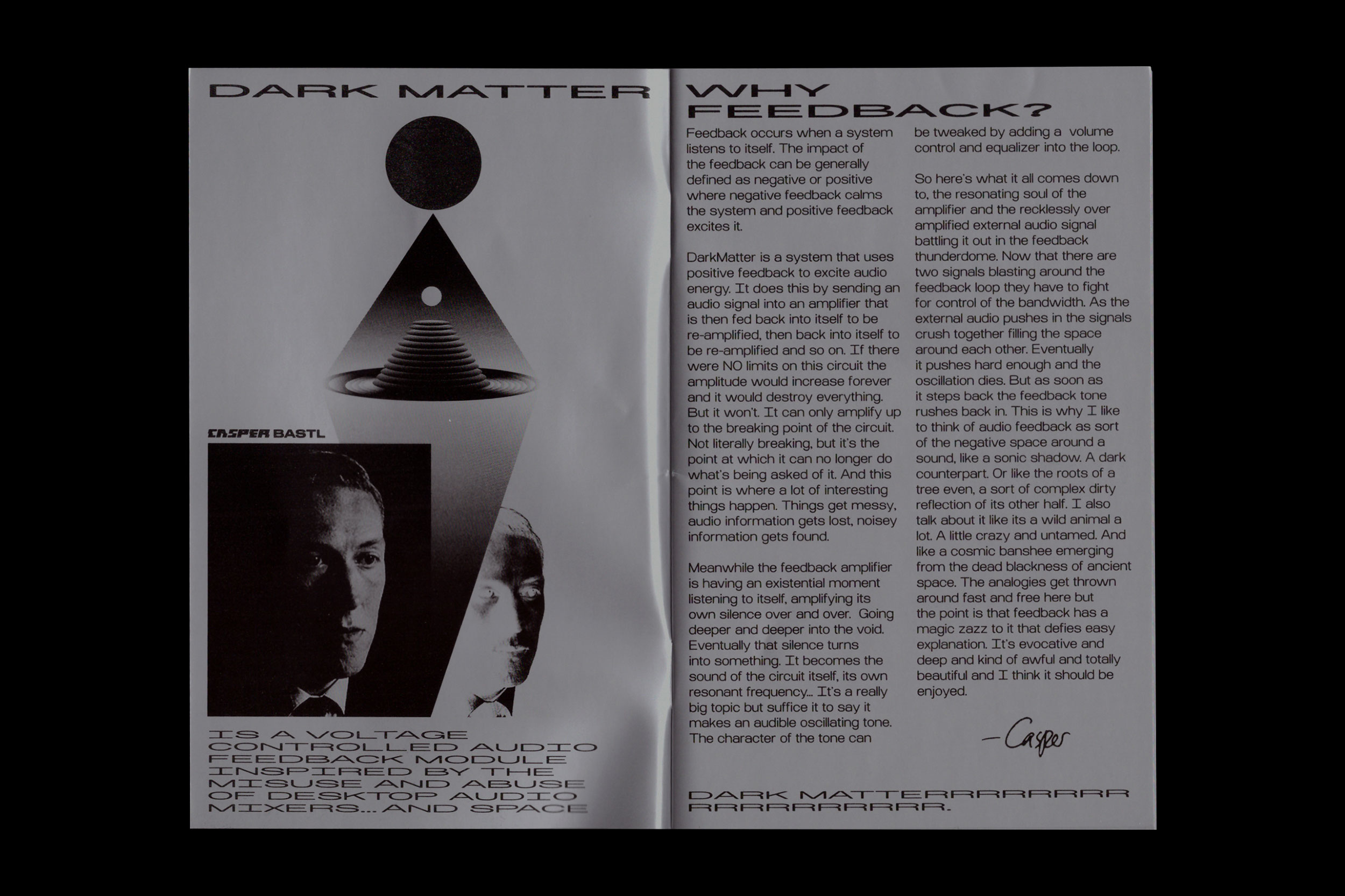

• pdf user manual download
• 日本 (nihon) manual pdf  – translated by our friends at Umbrella
