performative mute module

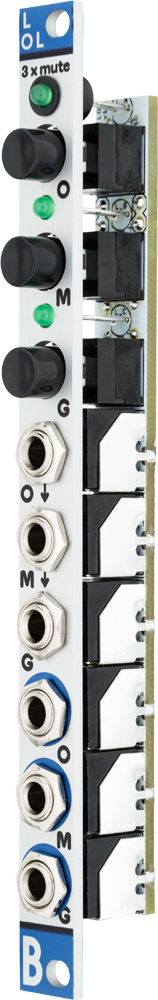

LOL is a performative 3 channel passive mute module with latching push buttons, LED indication, and normalization between inputs. It is intended to be a small and low-cost mute, but it can also be used as a switched multiple.
LOL has 3 channels: O, M and G. Each channel consists of an INPUT, a MUTE BUTTON with an LED, and an OUTPUT.
- 3-channel passive mute
- latching buttons
- LED indication
- normalization of inputs
- 2HP width
- 24mm deep (skiff friendly)
- power consumption: +12V: < 5mA
- 10-pin power connector (to power the LEDs)
- user manual pdf
