Discontinued

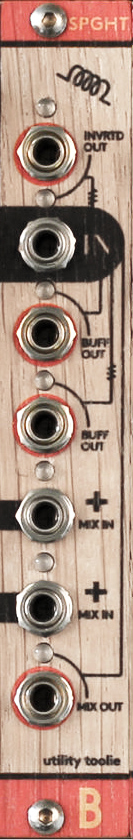

Spaghetti is a simple utility module for handling signals in your modular setup.

Buffered Multiple + Inverter + Unity Mix

Spaghetti has one main signal INPUT, INVERTED signal output, 2 BUFFered multiple outputs (with low offset cca 0.015%) and unity MIXED output with other 2 signal MIX INPUTS.

Features

• signal input
• inverted output
• 2x buffered low offset outputs (cca 0.015%)
• unity gain mix with 2 MIX INputs 1 MIX OUT
• bipolar LED to visualise each signal independently (visible from 2Volts)
• handmade in Brno, Czech republic
• front panel from oak wood

Technical details

• 4HP
• 35mm deep (skiff friendly)
• current: +12: <15mA, -12: <35mA, +5: <35 mA
• PTC fuse and diode protected 16 pin power connector
• requires 5V in bus board
• pdf user manual download
